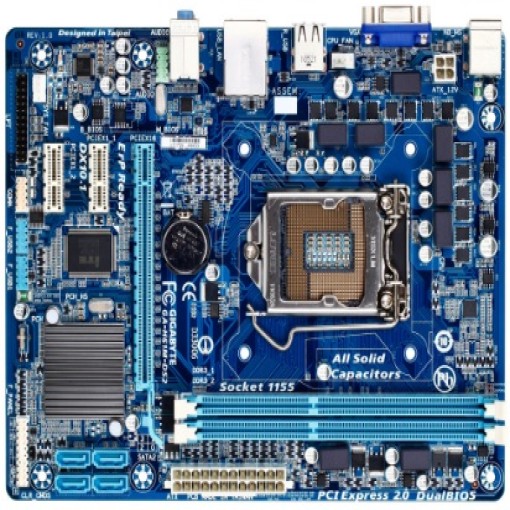

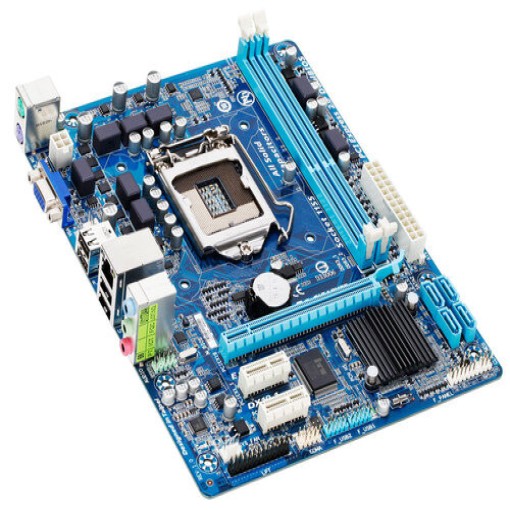

Gigabyte H61M-DS2 Full Specification Item Motherboard Model ✅ H61M-DS2 Brand Gigabyte Motherboard Type Standard Chipset Intel H61 Express Chipset
| Supported Processors | 2nd & 3rd Generation processor 1155 Socket |
|---|---|
| Max Memory | 16 GB |
| Onboard Video | Yes |
| Onboard Audio | Realtek ALC887 Audio Codec High Definition Audio 2 / 4 / 5.1/7.1-Channel |
| Onboard LAN | 1 x Atheros GbE LAN chip (10/100/1000 Mbit) |

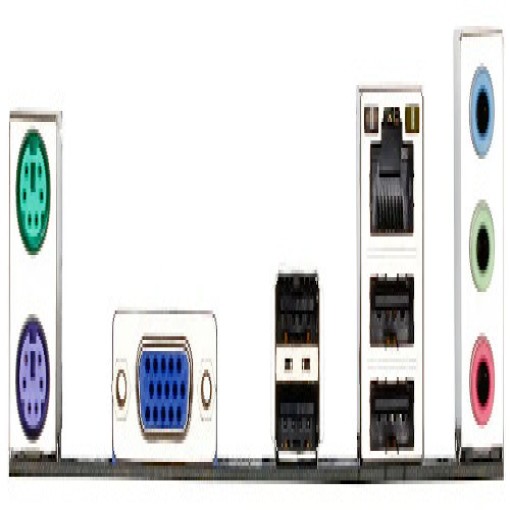

| Connectors | 1 x 24-pin ATX Main Power Connector 1 x 4-pin ATX 12V Power Connector 4 x SATA 3Gb/s Connectors 1 x CPU Fan Header 1 x System Fan Header 1 x Front Panel Header 1 x Front Panel Audio Header 2 x USB 2.0/1.1 Headers 1 x Parallel Port Header 1 x Serial Port Header 1 x clearing CMOS Jumper |
| Other Features | Support for DDR3 1333 / 1066 / 800 MHz Memory Modules |
